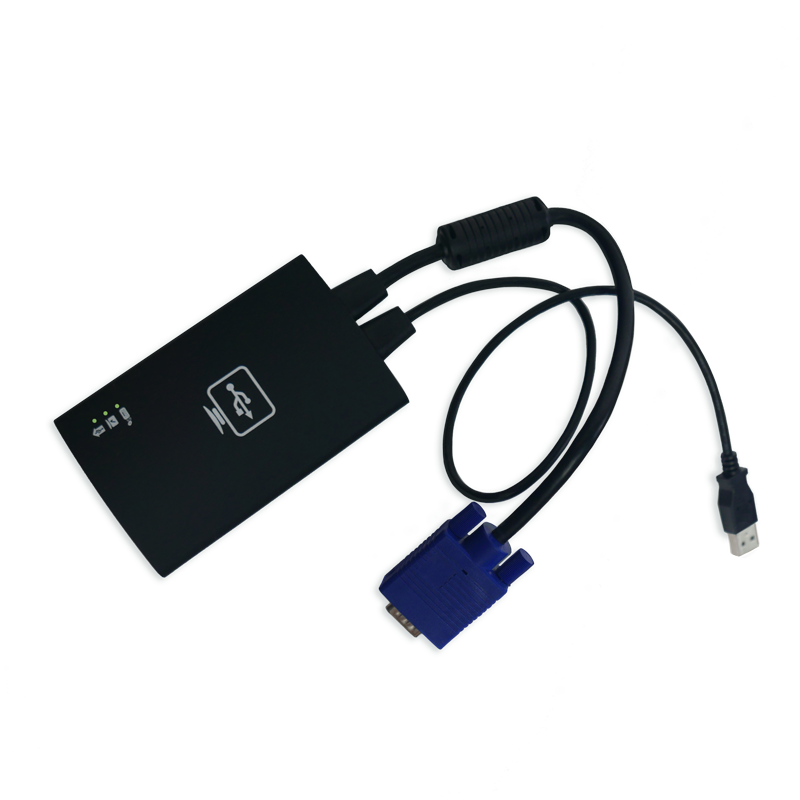

The USB Laptop Console II

Handheld KVM Access for Laptops


$499


Benefits

The USB Laptop Console II can replace your rolling cart with monitor, keyboard and mouse. Use your laptop to connect to the video port of any server in trouble. Useful also on field calls, where video monitors are not always where you want them. With the flexibility of a USB cable, you can position your laptop wherever it is easiest to work—perhaps even on your lap!

Features

  • View the video produced by a server on your laptop screen, without rebooting or changing it in any way.

  • USB keyboard and mouse is emulated so that you can interact with the server as a window on your laptop.

  • Real-time video scaling allows you to always see the entire screen, even on small laptop displays.

  • The USB Laptop Console is small, portable, and requires no separate power supply.

  • USB Laptop Console II supports file sharing and video capture between your laptop and the connected server

  • No drivers or software required on server.

  • Software provided for Windows, Mac OS X, and Linux laptops.


Download the product sheet with detailed specifications for USB Laptop Console II (pdf).


Connection Diagram



DETAILED SPECIFICATIONS

Connections

  • Inputs: Analog VGA video, USB keyboard and mouse (single connector). Captive cables.

  • Outputs: High-speed USB video (480Mbps) to laptop. Female Mini-B connector. Detachable cable.

  • Indicators: High speed USB link activity, Video good, USB keyboard/mouse link activity.

  • Power: Shares USB power from laptop and/or host.

Software Features

  • Max video resolution: 1920x1200 @ 60Hz or 1600x1200 @ 75Hz.

  • Video scaling modes: any scale from 6% to 100% (in 6.25% steps), full screen mode (uses all pixels of your laptop), maximized mode (laptop task bar is accessible).

  • Resize video just by resizing window. Entire video picture is always visible—no scroll bars ever.

  • Video capture includes fixed period and continuous-loop recording options for operational and debugging support (i.e., capture your server’s boot sequence).

  • Video adjustments: fine position control (image centering), sample phase (sharpness), video noise filtering controls.

  • Special keys: easily send Alt+F4, Ctrl-Alt-Del and other key sequences that would otherwise affect the laptop instead of the server.

  • Grab snapshot of screen into PNG or JPEG file.

  • Handy toolbar with common functions. Horizontal or vertical, detachable and removable as well.

  • Required software is included with the product. Package includes copy of the latest version at time of manufacture, and latest version is always available at www.dmtz.com

Laptop Requirements

  • Windows 2000/XP/Vista/7/8/8.1/10.

  • Mac OS X 10.6 or higher.

  • Linux 2.6 or higher.

  • One available high-speed USB port on laptop. 100mA current.

  • 20 Megabytes available disk space for install. 24-bit colour display.

Server Requirements

  • One USB port (full speed) for keyboard, mouse. 500mA current.

  • Analog VGA output, or, by output of DVI/VGA, HDMI/VGA, DisplayPort/VGA adapters.

  • Operating system compatibility: any Windows, Mac OS or Linux system.

Mechanical / Approvals

  • Size w/d/h: 74mm x 115mm x 15mm

  • Weight: 170g

  • Power: max 500mA at 5 VDC

  • FCC Class A, CE, VCCI, AS/NZS CISPR22 Approved and RoHS

Environmental

  • Operating: 0C to 40C/32F to 104F, 80% rh, nc

  • Storage: -40C to 70C/-40F to 158F

Part Numbers

ULC200A USB Laptop Console
ULC200A-10 USB Laptop Console – 10 pack





The USB Rugged Laptop Console III

Durable Handheld KVM Access for Laptops


$499

Benefits

The USB Rugged Laptop Console III is the hardier version of our USB Laptop Console II. This durable product comes in a rubberized, robust housing with the same hassle free setup and easy portability.

Features

  • View video (VGA) on a laptop screen.

  • USB keyboard and mouse is emulated so that you can interact with the server as a window on your laptop.

  • The USB Laptop Console is small, portable, and requires no separate power supply.

  • No drivers or software required on server.

  • Software provided for Windows, Mac OS X, and Linux laptops.

  • Durable performance, with a rubberized housing

  • Maximum portability with a compact footprint, built-in KVM cables and USB power

  • Hassle-free setup with plug-and-play installation

  • Built-in cables with strain relief to prevent wearing or breaking

  • Supports file sharing and video capture between your laptop and the connected server

  • Optimized viewing with automatic video scaling that resizes the viewing panel to avoid scroll bars

  • Supports resolutions up to 1920x1200

  • LED indicators for USB, video, and console link

  • Works with legacy and industrial devices


Download the product sheet with detailed specifications for the USB Rugged Laptop Console III (pdf).


Connection Diagram


DETAILED SPECIFICATIONS

Connections

  • Inputs: Analog VGA video, USB keyboard and mouse (single connector). Captive cables.

  • Outputs: High-speed USB video (480Mbps) to laptop. Female Mini-B connector. Detachable cable.

  • Indicators: High speed USB link activity, Video good, USB keyboard/mouse link activity.

  • Power: Shares USB power from laptop and/or host.

Software Features

  • Max video resolution: 1920x1200 @ 60Hz or 1600x1200 @ 75Hz.

  • Video scaling modes: any scale from 6% to 100% (in 6.25% steps), full screen mode (uses all pixels of your laptop), maximized mode (laptop task bar is accessible).

  • Resize video just by resizing window. Entire video picture is always visible—no scroll bars ever.

  • Video capture includes fixed period and continuous-loop recording options for operational and debugging support (i.e., capture your server’s boot sequence).

  • Video adjustments: fine position control (image centering), sample phase (sharpness), video noise filtering controls.

  • Special keys: easily send Alt+F4, Ctrl-Alt-Del and other key sequences that would otherwise affect the laptop instead of the server.

  • Grab snapshot of screen into PNG or JPEG file.

  • Handy toolbar with common functions. Horizontal or vertical, detachable and removable as well.

  • Required software is included with product. Package includes copy of the latest version at time of manufacture, and latest version is always available at www.dmtz.com

Laptop Requirements

  • Windows 2000/XP/Vista/7/8/8.1/10.

  • Mac OS X 10.6 or higher.

  • Linux 2.6 or higher.

  • One available high-speed USB port on laptop. 100mA current.

  • 20 Megabytes available disk space for install. 24-bit colour display.

Server Requirements

  • One USB port (full speed) for keyboard, mouse. 500mA current.

  • Analog VGA output. Or by output of DVI/VGA, HDMI/VGA, DisplayPort/VGA adapters.

  • Operating system Compatability: any Windows, Mac OS or Linux system.

Mechanical / Approvals

  • Size w/d/h: 74mm x 115mm x 15mm

  • Weight: 170g

  • Power: max 500mA at 5 VDC

  • FCC Class A, CE, VCCI, AS/NZS CISPR22 Approved and RoHS

Environmental

  • Operating: 0C to 40C/32F to 104F, 80% rh, nc

  • Storage: -40C to 70C/-40F to 158F

Part Numbers

ULC300A USB Laptop Console
ULC300A-10 USB Laptop Console – 10 pack





DMT-303

Single Channel KVM-Over-IP Appliance

Ensure remote access to your systems, whether they’re in your building or in another country, with enterprise-class KVM-over-IP from Digital Multitools.

Businesses today frequently run servers in many locations, and with many outsourced applications, they must monitor the physical servers that house them. Dependable control of a server’s BIOS is an important link to essential data and processes. Digital Multitools offers the DMT-303 Single Channel KVM-over-IP appliance to monitor and manage distributed servers with a platform-independent, light-bandwidth remote server controller.


$599

Features

  • The controller itself hosts the web-based control application, no extra software or licensing needed

  • Transfer files to or install software on remote servers

  • Upgrade a remote server’s operating system

  • Reset and reboot remote servers

  • Watch a reset or reboot process

  • Remotely control appliances and systems that have an RS-232 serial port

Applications

  • Access servers secured in machine rooms

  • Access co-located servers

  • Acquire BIOS level remote access to servers at co-location facilities and ISPs

  • Access corporate datacenter appliances (e.g. switches, routers, alarm systems, environmental controls, and others)

  • Manage outsourced servers and other IT hardware

Applications

Distributed computing configurations make dependable, high-quality KVM-over-IP essential in any of the following circumstances:

  • accessing servers secured in machine rooms.

  • accessing co-located servers

  • acquiring BIOS level remote access to servers at co-location facilities and ISPs

  • accessing corporate datacenter appliances (e.g. switches, routers, alarm systems, environmental controls, and others)

  • managing outsourced servers and other IT hardware

Control

The DMT-303 includes an onboard Web Server to configure and administer the unit using a low-bandwidth Java-enabled web browser and your choice of operating system. You can even use this simple, lightweight application over a dialup connection. The DMT-303 is flash-upgradeable, so you can upgrade your KVM-over-IP appliance from a remote location.


Download the product sheet with detailed specifications for DMT-303 (pdf).


Connection Diagram


DETAILED SPECIFICATIONS

Connections

  • Gigabit LAN Ethernet

  • Secondary Gigabit WAN Ethernet with optional bridging

  • USB keyboard and mouse to device

  • Video in passthrough

  • USB host ports (2)

  • Support USB to serial

Switches & Indicators

  • LAN & WAN link/activity

  • USB link activity

Server KM Interface

  • USB and/or PS/2

Local KM Interface

  • USB and/or PS/2

Supported Video Modes

  • All non-interlaced VESA-standard modes

Maximum Video Resolution

  • 1920 × 1200

Maximum Users

  • 1 active user plus up to 3 viewing

Supported Operating Systems

  • Windows 10, 7, NT, 95, 98, 2000, ME, XP, Vista, Linux, UNIX, Mac OS X

Network Protocols

  • SSH, HTTP, SNMP, HTTPS, VNC & VNCS

Security

  • 128-bit SSL Encryption, RADIUS

LAN Ethernet

  • 10/100/1000 Base TX

Secondary WAN Ethernet

  • 10/100/1000 Base TX

Rack Mountable

  • Yes (optional Rack Mount Kit)

Power Consumption

  • 7 Watt (Plus USB host power)

Package Contents

  • DMT-303 KVM IP unit

  • Cat-5 Network Cable




The USIF100 Serial Interface

The USIF001 Serial Interface product is a device that converts a bus mouse protocol trackball or a serial protocol keypad into a USB HID-class protocol device.

$170


Connectors

The product has a D-Sub 9-pin female connector which connects to either the trackball or the keypad. The other side of the product contains the USB standard B-type connector. An LED located beside the USB connector indicates the status of the unit.

Operation

The unit will automatically detect if it is attached to a keypad or trackball. In order for this feature to work properly, the keypad or trackball must be attached to the unit prior to connecting the USB. When the USB is connected, the LED will light yellow to indicate trackball operation, or green to indicate keypad operation. Once the connected device has been verified, then the unit will pass on USB power to the device, and normal device operation will begin. This process takes less than a second.


Download the product sheet with detailed specifications for USIF100 Serial to USB adapter (pdf).


Connection Diagram



DETAILED SPECIFICATIONS

Server Requirements

  • One USB port (full speed) for keypad, trakpad, 100mA current.

  • Operating system which supports absolute USB mouse: Windows 2000 and up, Mac OS, Linux, etc.

Mechanical / Approvals

  • Size w/d/h (mm) : 74 L x 50 W x 28 H

  • Weight: 50g

  • Power: USB powered,  5 VDC, 20mA

  • FCC Class A,  RoHS

Environmental

  •  Operating: 0C to 40C/32F to 104F, 80% rh, nc

  •  Storage: -40C to 70C/-40F to 158F

Part Numbers

USBIF – Serial to USB Adapter
