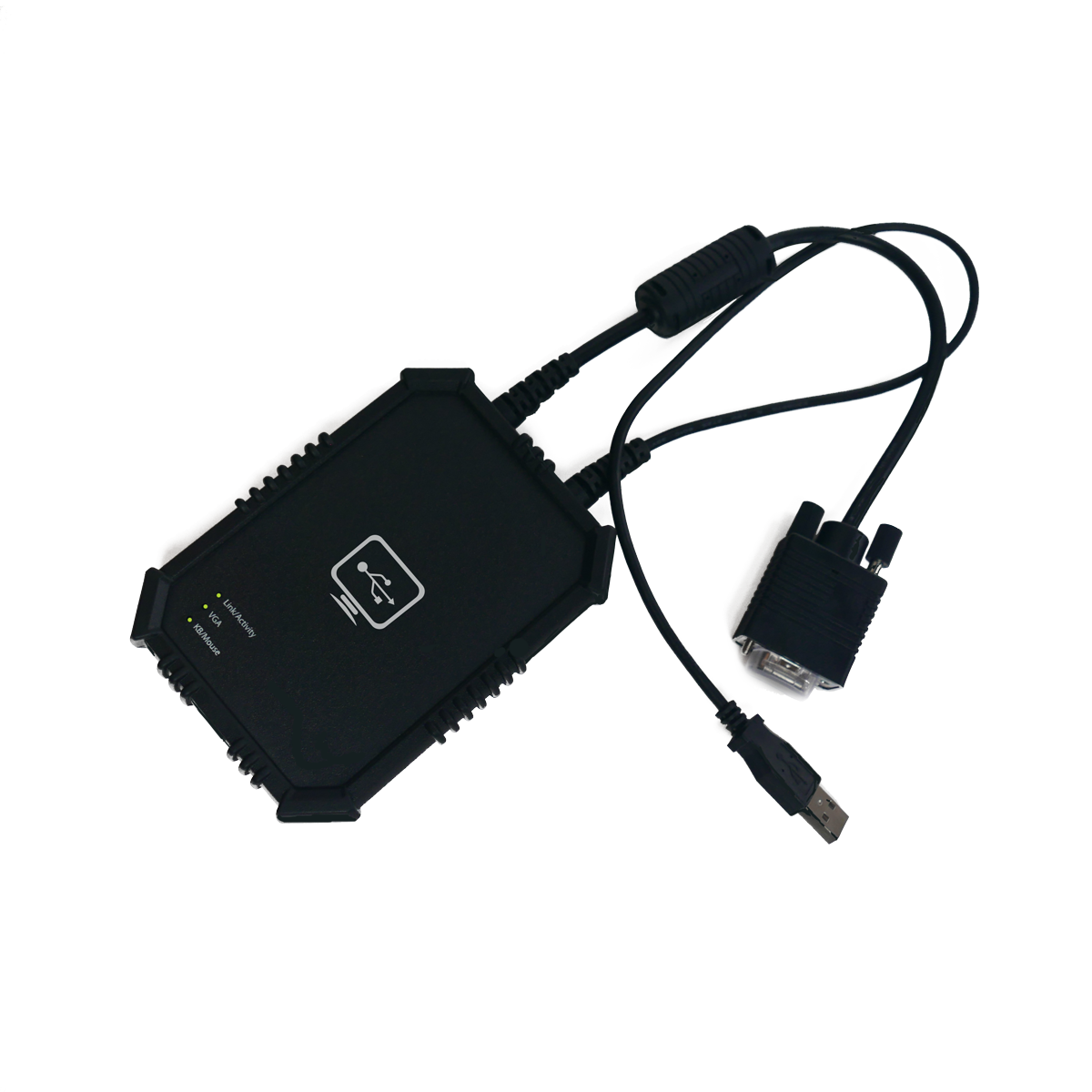

The USB Rugged Laptop Console III

Durable Handheld KVM Access for Laptops


$565

Benefits

The USB Rugged Laptop Console III is the hardier version of our USB Laptop Console II. This durable product comes in a rubberized, robust housing with the same hassle free setup and easy portability.

Features

  • View video (VGA) on a laptop screen.

  • USB keyboard and mouse is emulated so that you can interact with the server as a window on your laptop.

  • The USB Laptop Console is small, portable, and requires no separate power supply.

  • No drivers or software required on server.

  • Software provided for Windows, Mac OS X, and Linux laptops.

  • Durable performance, with a rubberized housing

  • Maximum portability with a compact footprint, built-in KVM cables and USB power

  • Hassle-free setup with plug-and-play installation

  • Built-in cables with strain relief to prevent wearing or breaking

  • Supports file sharing and video capture between your laptop and the connected server

  • Optimized viewing with automatic video scaling that resizes the viewing panel to avoid scroll bars

  • Supports resolutions up to 1920x1200

  • LED indicators for USB, video, and console link

  • Works with legacy and industrial devices


Download the product sheet with detailed specifications for the USB Rugged Laptop Console III (pdf).


Connection Diagram


DETAILED SPECIFICATIONS

Connections

  • Inputs: Analog VGA video, USB keyboard and mouse (single connector). Captive cables.

  • Outputs: High-speed USB video (480Mbps) to laptop. Female Mini-B connector. Detachable cable.

  • Indicators: High speed USB link activity, Video good, USB keyboard/mouse link activity.

  • Power: Shares USB power from laptop and/or host.

Software Features

  • Max video resolution: 1920x1200 @ 60Hz or 1600x1200 @ 75Hz.

  • Video scaling modes: any scale from 6% to 100% (in 6.25% steps), full screen mode (uses all pixels of your laptop), maximized mode (laptop task bar is accessible).

  • Resize video just by resizing window. Entire video picture is always visible—no scroll bars ever.

  • Video capture includes fixed period and continuous-loop recording options for operational and debugging support (i.e., capture your server’s boot sequence).

  • Video adjustments: fine position control (image centering), sample phase (sharpness), video noise filtering controls.

  • Special keys: easily send Alt+F4, Ctrl-Alt-Del and other key sequences that would otherwise affect the laptop instead of the server.

  • Grab snapshot of screen into PNG or JPEG file.

  • Handy toolbar with common functions. Horizontal or vertical, detachable and removable as well.

  • Required software is included with product. Package includes copy of the latest version at time of manufacture. (request software update)

Laptop Requirements

  • Windows 2000/XP/Vista/7/8/8.1/10.

  • Mac OS X 10.6 or higher.

  • Linux 2.6 or higher.

  • One available high-speed USB port on laptop. 100mA current.

  • 20 Megabytes available disk space for install. 24-bit colour display.

Server Requirements

  • One USB port (full speed) for keyboard, mouse. 500mA current.

  • Analog VGA output. Or by output of DVI/VGA, HDMI/VGA, DisplayPort/VGA adapters.

  • Operating system Compatability: any Windows, Mac OS or Linux system.

Mechanical / Approvals

  • Size w/d/h: 74mm x 115mm x 15mm

  • Weight: 170g

  • Power: max 500mA at 5 VDC

  • FCC Class A, CE, VCCI, AS/NZS CISPR22 Approved and RoHS

Environmental

  • Operating: 0C to 40C/32F to 104F, 80% rh, nc

  • Storage: -40C to 70C/-40F to 158F

Part Numbers

ULC300A USB Laptop Console
ULC300A-10 USB Laptop Console – 10 pack
